Description

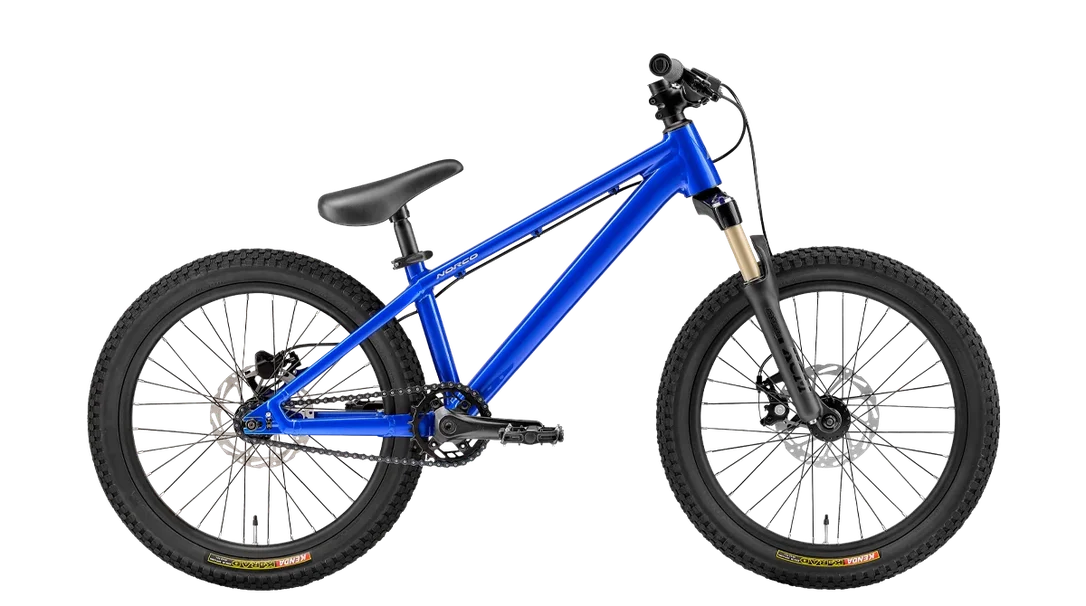

Bringing our progressive design to 7-10 year old riders requires more than just shorter measurements, and smaller tubes – we built the Fluid FS 2 20 with low standover, longer reach, and youth-tuned suspension components.
The Fluid FS 2 20 features 100mm of X-Fusion 02 Pro rear suspension matched to a Manitou J-Unit Expert Air 120mm fork. It features Norco youth-specific touch points, a Shimano Zee/Deore 10-speed drivetrain and Tektro hydraulic disc brakes.
– Aluminum Full-Suspension Frame
– Manitou Machette J-Unit 20″ TS Air Fork
– Shimano Zee/Deore Drivetrain
– Vee Rubber Crown Gem 20 x 2.25″ Tires
Specs
| Frame | 6061 Aluminum, 100mm Travel, tapered headtube, boost axle spacing, ISCG05 mount |
|---|---|
| Fork | Manitou J-Unit 20″, TS Air, Alloy Steerer 120mm Travel |
| Headset | FSA #57 E |
| Rear Shock | X-Fusion 02 Pro R, custom light tune |
| Rims/Wheels | Alloy Double Wall Disc |
| Hubs | Front: Alloy 6 Bolt Disc, Boost 15×110 Rear: Alloy 12x148mm Boost |
| Spokes | Stainless 14g, Black |
| Tires | Vee Rubber Crown Gem 20×2.25″, Skinwall |
| Crankset | Samox AM38J 3 piece 140mm, narrow/wide |
| Chainrings | 30T |
| Bottom Bracket | Square taper |
| Chain | KMC X10 |
| Rear Derailleur | Shimano Zee RD-M640 |
| Cassette/Rear Cogs | Shimano Deore CS-HG50 11-36T |
| Shifters | Shimano Deore SL-M6000 10 speed |
| Handlebars | Alloy, 620mm, 15mm Rise |
| Tape/Grips | Norco Jr 92mm, lock on |
| Stem | 35mm reach MTB |
| Brakes | Tektro HD-M276 Hydraulic, Jr lever, 160mm |
| Pedals | Jr flat resin, metal pins |
| Saddle | Norco Jr. MTB Saddle |
| Seat Post | Norco alloy post with micro adjust head |
