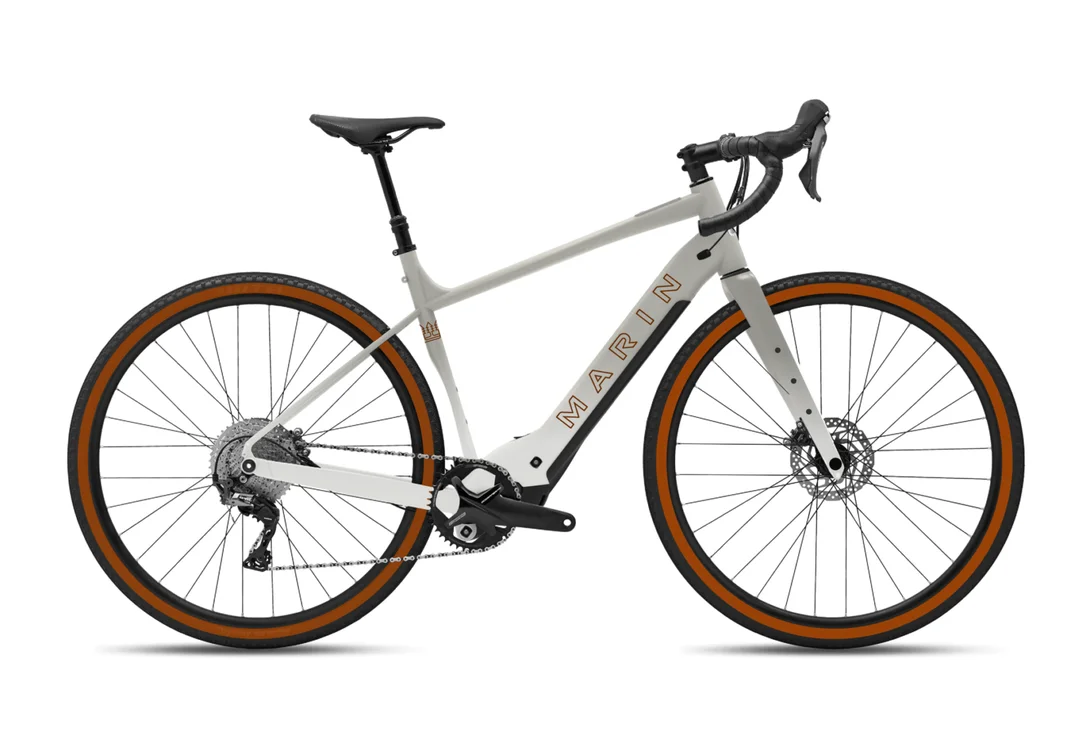

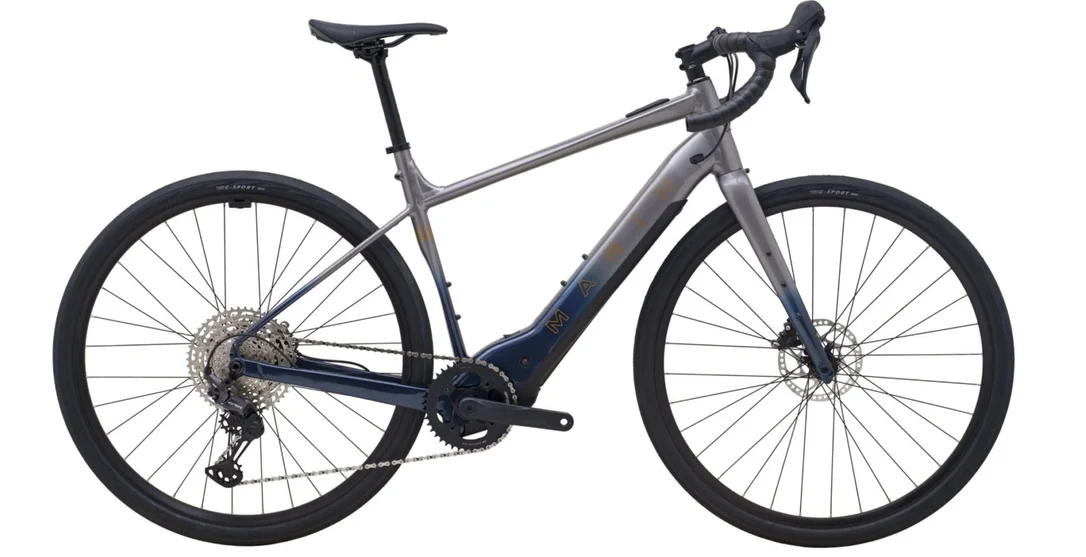

Marin Lombard E2

Description

We here at Seattle Electric Bike are super excited for this latest lightweight offering by Marin in the Gravel-City category! Equipped with the new Bosch SX sprint motor this bike will help eliminate the climbs on your gravel adventure or get you to your appointment in the city faster than a car!  Throw on a 250wh range extender and increase your ride by over 60%.  This bike is perfect for those craving an affordable, lighter option that pedals so smoothly that you will forget it is an e-bike until you look at your speedometer.

The Lombard E brings Bosch assisted performance to drop bars. Great for gravel, commuting or just long, assisted road rides, both Lombard models are built upon Series 4 aluminum Beyond Road frames with 400Wh batteries securely mounted inside the downtube. Bosch’s Performance Line SX drive unit provides 55Nm of quiet and natural-feeling torque to zip you along.

FRAME

All-New Series 4 Beyond Road E, 6061 Aluminum, One-Piece Hydroformed Downtube & Motor Mount, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

FORK

Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

RIMS

Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible

HUB REAR

Forged Aluminum Alloy, 142x12mm, Disc, 32H

HUB FRONT

Forged Aluminum Alloy, 100x12mm, Disc, 32H

SPOKES

14g Black Stainless Steel

TIRES

Vee Tire Co., G-Sport, 700×44, Tubeless Compatible

DERAILLEUR REAR

Shimano GRX Di2

SHIFT LEVER

Shimano GRX Di2

CRANKSET

e*thirteen e*Spec Plus, Forged Arm, 42T Steel Chainring

MOTOR

Bosch SX, 250W, 55Nm, Class 1 (25Km/h)

CHAIN

KMC E12S

CASSETTE

Shimano SLX CSM7100, 10-51T

BRAKE, FRONT

Shimano GRX RX820, Flat-Mount Hydraulic Disc, 160mm Rotor

BRAKE, REAR

Shimano GRX RX820, Flat-Mount Hydraulic Disc, 160mm Rotor

BRAKE LEVERS

NEW Shimano GRX

HANDLEBAR

Marin Butted Alloy, Compact 16º Flared Drop

STEM

Marin 3D Forged Alloy

GRIPS

Marin Adventure Tape

HEADSET

FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

SEATPOST

TranzX YSP38J, Size S-M 70mm, Size L-XL 110mm Travel, 27.2mm

SADDLE

Marin Beyond Road Concept Elite

PEDALS

Nylon Platform

KICKSTAND

Removable kickstand mount

BATTERY

Bosch CompactTube 400, 400Wh

EXTRAS

Bosch MiniRemote HMI, Bluetoth

RANGE, CHARGING TIME

14-85 miles/22-137km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 3.5 hours (estimated, under ideal conditions)
