Description

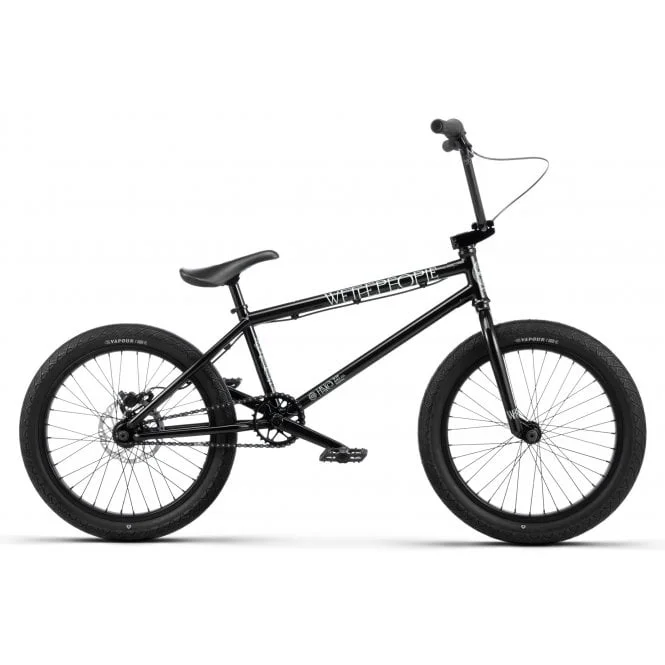

Taking our hugely popular Chaos Machine aftermarket frame as a base, we wanted to bring a new kind of trail/dirt based complete bike to the masses. Fully equipped with a hydrualic disc-brake and full eclat aftermarket parts package, the HAVOC is available in both 20″ and 22″ wheel sizes allowing you to enjoy the finer things in life on a bike deisgend to fit your every need.
FRAME:
WETHEPEOPLE “HAVOC 20” frame, trail geometry, 4130 full crmo, disc brake mount
FORK:
WETHEPEOPLE “HAVOC 20” fork, 4130 ful crmo, 32mm offset
BARS:
WETHEPEOPLE “HAVOC 20” bar, full 4130 crmo
Grips:
SALT “EX” grips, 155.4mm, with flange
STEM:
ÉCLAT “METRA” topload stem, cnc alloy, 51mm reach, 30mm rise
HEADSET:
ÉCLAT “WAVE 6” int. headset, sealed bearing
GYRO:
no holes for removable gyro tabs
LEVER:
MAGURA “MT4” hydraulic disc brake brake lever
BRAKES:
MAGURA “MT4” hydraulic disc brake, 140mm rotor
CRANKS
SALTPLUS “ULTRA” square profile 3pc “TSS” crank, crmo, 170mm, 8 spline
BB:
SALT “MID” bb, 19mm, press fit, sealed bearing
PEDALS:
ÉCLAT “CONTRA” pedals, nylon/fiberglass
CHAIN:
WETHEPEOPLE “SUPPLY” chain
SPROCKET:
ÉCLAT “EXILE” sprocket, cnc, 7075-T6 alloy, 28t
DRIVER:
1pc cassette driver, 9t, sealed bearing
FRONT HUB:
ÉCLAT “EXILE” hub, fully sealed, 3/8″s axle, 36h
REAR HUB:
ÉCLAT “EXILE DISC” cassette hub, fully sealed, 9t, female axle, 36h, disc brake mount
HUBGUARDS:
–
FRONT RIM:
WETHEPEOPLE “LOGIC” rim, double wall, sleeved, 36h
REAR RIM:
WETHEPEOPLE “LOGIC” rim, double wall, sleeved, 36h
SEAT:
ÉCLAT “EXILE” pivotal seat, slim padded
SEAT POST:
SALT “AM” pivotal seat post, 200mm, alloy
SEAT CLAMP:
ÉCLAT “PURE” seat clamp, forged alloy
TIRES:
ÉCLAT “VAPOUR” tires, 20″ x 2.4″ front, 20″ x 2.25″ rear
PEGS:
–
WEIGHT:
12.26kg / 27.03lbs
COLORS:
black
–
