Description

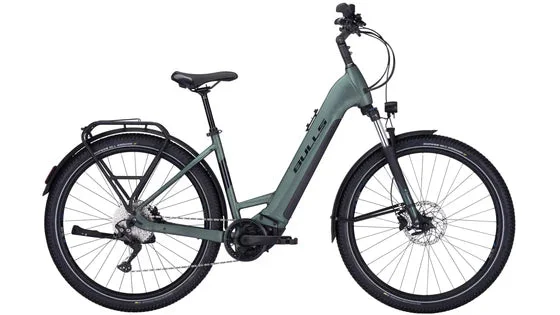

ICONIC EVO 1 750 WAVE
The ultimate Class 1 commuter just got even more comfortable with its new step-thru frame design.
The BULLS Iconic EVO 1 750 Wave is a versatile electric bike designed for riders who seek a reliable and powerful ride for both urban commuting and off-road adventures. This eBike combines robust features with a sleek design, making it suitable for a variety of riding conditions. Here’s a detailed look at its features:
DriveUnit: Bosch Performance Line CX Smart System (85 Nm)
Battery: BOSCH PowerTube 750 Wh Smart System
Charger: 4A Charging time appx. 6.0 hrs.
Charging time: appx. 6.0 hrs.
Display: LCD Remote + Kiox 300
Frame: aluminum 6061
Fork: SR Suntour XCM32-DS LOR Coil, 120 mm
RearShock:
Derailleur: Shimano Deore RD-M5120SGS
Gears: 10-speed
Crankset: FSA 165 mmCassette: Shimano CS-M4100, 11-42T
Brakes: Tektro HD-M390 hydraulic disc, 180/180 mm
Handlebar: STYX MTB Alloy, Dia 31.8 mm, 740 mm, 25 mm raise, 9° back swept
Stem: aluminum, adjustable
Seatpost: Limotec A3-Z suspension dropper, 30.9 mm
Seat: Iconic SUV
Hubs: Formula HCL-81/CL-2241QR
Rims: Ryde Disc 30
Tires: Supero All Ground 62-584/27.5 x 2.40
Pedals: Wellgo C-098DU black body
Weight: 63.6 lbs.
Geometry
| Frame Size | 41CM | 44CM | 48CM | 54CM | |
|---|---|---|---|---|---|
| Seat Tube Length | A | 410 | 440 | 480 | 540 |
| Top Tube Length | B | 615 | 620 | 635 | 660 |
| Chain Stay Length | C | 450 | 450 | 450 | 450 |
| Bottom Bracket Offset | D | 60 | 60 | 60 | 60 |
| Head Tube Length | E | 160 | 160 | 160 | 160 |
| Head Tube Angle | α | 67° | 67° | 67° | 67° |
| Seat Tube Angle | β | 74.5° | 74.5° | 74° | 74° |
| Standover Height | 490 | 490 | 490 | 490 | |
| Wheelbase | 1185 | 1190 | 1198 | 1226 | |
| Reach | 428 | 433 | 441 | 461 | |
| Stack | 675 | 675 | 675 | 694 |
Measured in millimeters
Sizing
5-year Frame Warranty
